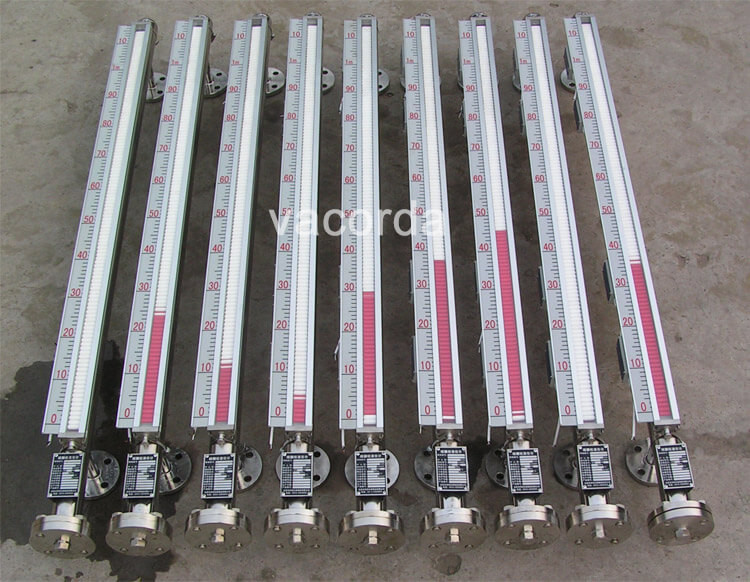

1Cr18Ni9Ti Tank Magnetic Water Level Indicator With Rs485 Wireless
Why choose us:
Our products (wide range of tank level instruments)
Magnetic level gauge, Reflex gauge, transparent gauge, Radar sensor, ultrasonic level sensor, Level transmitter, float level gauge, level switch, flow meter
Advantages
- 24 years professional manufacturer in China, 30% Senior professional engineers, sales market nearly 30 countries
- Our factory nearly 20000 m2, hundreds of CNC equipments and inspection devices
- Certification: 20 Technology Patents, ISO9001:2015, European CE and ATEX explosion-proof certificate
- The structure of level gauge is designed according to the world leading brands - US Emerson & Germany WIKA & Switzerland E+H
- Flange manufactured to meet ASME/ANSI, JIS, DIN, HG/T20592-2009 standard
- One - year quality warranty
- Great measurement accuracy and reliability, Longest using life up to 10 years
- OEM accept
Product Description
Glass plate level gauge is divided into three kinds: Transparent type, reflection-type and sight glass type. The level gauge is mainly composed by level gauge’s body, upper valve (gas valve), lower valve (liquid valve), drain valve, insurance steel ball and so on. When the glass plate have some cracks or be damaged, the insurance steel ball will automatically stop the side valve of gas and liquid to avoid or reduce flowing. So the worker can cut off the bottom valve to handle it. This series product is stable, sealed and reliable, simple installation, which is ideal instrument for detecting for liquid level in all kinds of containers with middle or low pressure.
Connecting the upper and lower flanges of this level gauge with the upper and lower flanges of the container to form a permeator, then the height of liquid can be directly seen.
Features:
1. Clear and direct reading, good sealability.
2. High working temperature: ≤+250°C
3. High working pressure: ≤PN300
4. Long lifetime, simple structure, easy installation and maintenance
Technical parameters:
| Nominal length (center to center ): | 0~300-0~2000mm |
| Recommended length: | 550, 850, 1150, 1450, 1750mm |
| Material: | Carbon steel, 304, 316L |
| Nominal pressure (MPa): | Transparent type: 2.5, 6.3; Reflection-type: 4.0; Sight glass type: 0.1, 0.6 |
| Working temperature: | 0~250℃ |
| Connection flange: | DN20 (3/4”); A,B type---HG20592; C type---HG20615-09 |
| Heating steam cube connector: | RC1/4 internal thread |
| Heating steam pressure: | ≤1.0MPa |
| Steel ball closing pressure: | ≥0.3MPa |
Workshop and Processing
How to choose the method of magnetic flap liquid level gauge valve
There are several types of magnetic flap level gauge valves. In order to select the correct connection type, the user must select them according to specific working conditions. The following is a brief introduction to valve types. Everyone can choose the desired destination when choosing a valve.
During the installation process, the magnetic flap level gauge should be connected to the interior of the container under test. Often two communication pipes are associated with the flange on DN25. In order to facilitate future protection, this interface should generally be connected. If the valve is installed on the film and the level gauge assembly fails during production or daily protection, it can be repaired by closing the valve and ejecting the medium from the level gauge.
Type 1, globe valve
A shut-off valve (also called a shut-off valve) is a force-sealed valve. When closing the valve, it is necessary to apply pressure to the valve flap so that the sealing surface will not leak. When the medium enters the valve under the valve disc, the resistance overcome by the operating force is the friction between the valve stem and the packing and the thrust generated by the medium pressure. The force to close the valve is greater than the force to open the valve. Its diameter must be large. Otherwise, the top of the valve will be bent.
Type 2: Ball valve
The flip open and close member (spherical body) is a valve that is driven by the valve stem and rotates around the axis of the ball valve. It can also be used for fluid regulation and control. The single seal v-ball valve has a strong shear force between the v-ball core and the hard-faced metal seat, and is particularly suitable for fibers and small solid particles.
Type 3: Gate valve
Strengths: Save effort when opening and closing. Compared with the shut-off valve, whether the valve is opened or closed, the trek direction of the gate is perpendicular to the direction of media movement. Disadvantages: Corrosion and wear are easy to occur between the sealing surfaces, making protection difficult. The external scale is large, which requires a certain opening space, and the opening and closing time is long. The structure is more complicated.
Generally, the ball valve or globe valve is the valve selected in the connection between the electromagnetic valve plate level gauge and the water tank flange. According to the concept analyzed above, in order to quickly and tightly close when problems occur, generally good ball valves can be quickly closed and closed, most of which choose more ball valves.
