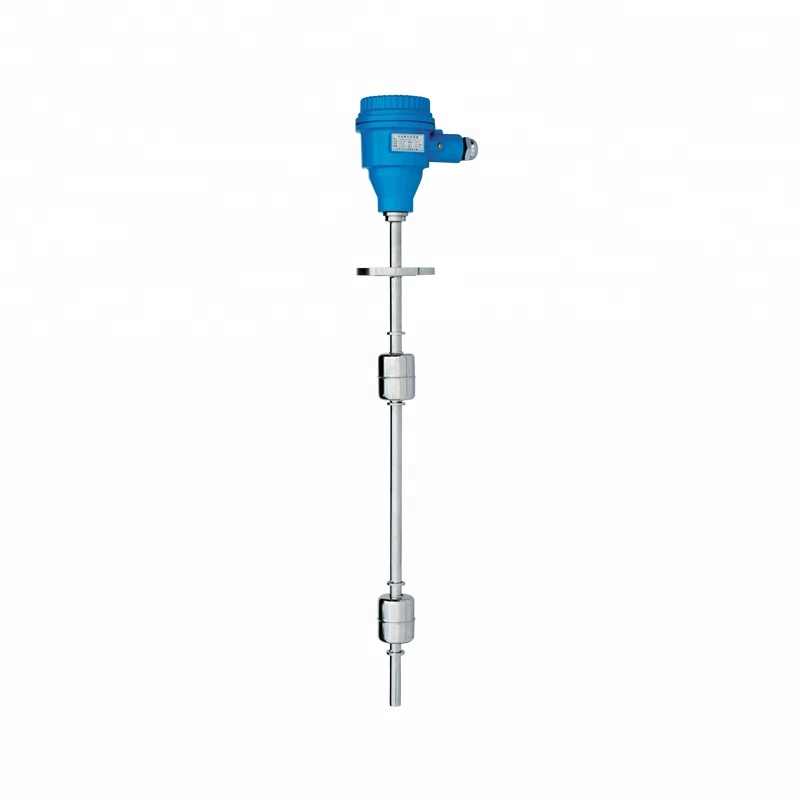

Explosion Proof Magnetic Float Ball Type Liquid Level Switch

Name: Explosion Proof Magnetic Float Ball Type Liquid Level Switch
Brand: Vacorda
Price: 55.00 USD

Buy cheap Explosion Proof Magnetic Float Ball Type Liquid Level Switch product

Place of Origin : Sichuan, China (Mainland)

Brand Name : Vacorda

Model Number : UHKG

Supply Ability : 100 Piece/Pieces per Month

Packaging Details : wooden box.

MOQ : 1 Piece/Pieces

Price : $55.00 - $109.00 / Pieces

Certification : CE/TUV/ISO9001/SGS

model : magnetic float ball type liquid level sensor

After service : twelve months

Meterial : 304,316L,1Cr18Ni9Ti,0Cr18Ni9,00Cr17Ni14Mo2,Titanium

Connection : flangeDN50~DN150 RF

Max measurement : L=6m

max control area : L-120mm

Min control : 50mm

density : >0.5g/cm3

pressure : PN2.5-PN160

float diameter : D28~120

Port : shanghai/shenzhen

Contact Now

Explosion proof magnetic float ball type liquid level switch

UHKG magnetic floatlevel controllerconsists of reed, magnetic floatball andinternal circuit, which is basedon the floating principlethat utilizesmagnetic floatball to make the reed close or open at the lowestand highest points according tothe heightchanging of the liquid level.UHKGtype floatlevel controlleris composedof reedpipe, magneticfloat andinternal circuit, taking advantage of the floating ball witha magneticcomponent lifting with the levelto drivethe openingor closingof theoffline and online location of the dry reed pipe. Through the internal circuit device outputs a set of continuously open to continuously closed ( SPDT) passivecontact ,the contacts can stringdirectly into the AC contactorcoil circuit which can control the AC contactor to close or open ( without the need for additional secondary circuit ) to control the water pump motor or other electrical equipment’s play or stop and to control the container’s level automatically.

Product features

1. Long life span, stable andreliable operation, easy installation, almost no maintenance

2. Independent of mediums’physical and chemical status.

3. Appliable for allkinds ofbad mediumenvironment with density ≥0.5g/cm³.

4. Available for interfacedetection of mediums with twodifferent densities.

5. Wide application range. Pressure 0~PN160(max. upto PN320),temperature -40~+150 ° c;

6. Anti-explosion design.

7.Upper limit and/or lowerlimit available.

Technical parameter

connection type:	flange DN50~DN150, G2" or G11/2" thread
diameter pipe:	16mm, 20mm
max length:	6000mm
switching state:	SPST; SPDT
switch No.:	max 8 switches
contact nodes:	AO-normally open (250VAC 0.5A 20W)
	AC-normally closed ( 250VAC 0.5A 20W )
	BO- normally open (250VAC 1.0A 250W)
	BC- normally closed ( 250VAC 1.0A 250W )
	C-transformation ( 250VAC 1.0A 60W )
life time:	≤1x10⁹
tolerance:	±8^{±2 mm}
minmum distance of tow switches:	50mm
transmitting:	above2000mm
medium density:	above 0.5g/cm³
working presure:	PN2.5~PN160
working temperature:	-40~80°C; -40~120°C
high temperature type:	≤150°C
float ball:	φ30~ φ120
material:	304,316L, 321, 1Cr18Ni9Ti, 0Cr18Ni9Ti, 00Cr17Ni14Mo2, Titanium
installation of no vertical:	≤±25°
protection class:	IP65
explosion-proof:	ExiaII CT5

Explosion Proof Magnetic Float Ball Type Liquid Level Switch
